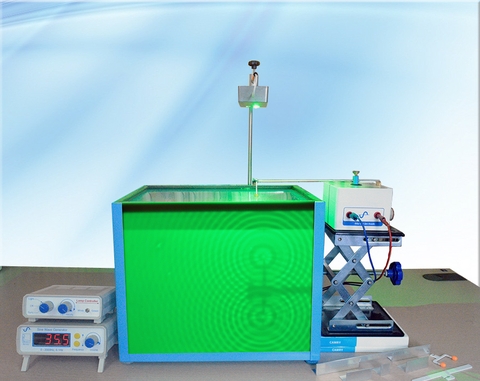

Bộ thí nghiệm về sóng nước

Mã số: PTVL2025

Nhà sản xuất: AELAB

Mục đích:

  1. Tạo sóng phẳng
  2. Tạo sóng tròn,
  3. Giao thoa sóng nước
  4. Hiệu ứng doppler
  5. Đo bước sóng.



The purpose of the ripple tank is to provide clear demonstrations of basic wave phenomena in the form of ripples on water that can easily be made visible.
Experiment examples: Generation of circular and straight waves, reflection, refraction, diffraction, interference, Doppler effect.

Including:

- Audio Generator 0 - 2000Hz

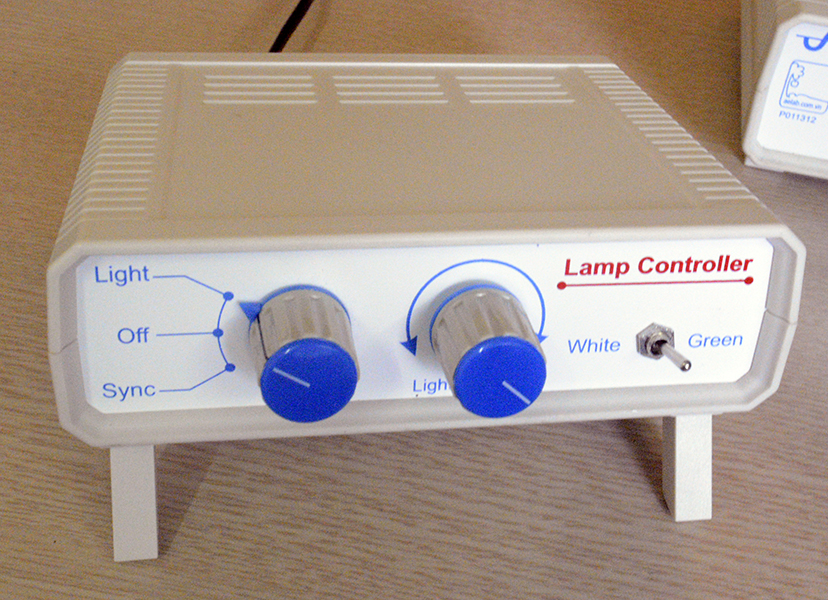

- Lamp Controller

- Vibrator

- Lamp

- Adjustable stand base

- Ripple tank with projection mirror, viewing screen.

- Module for generating straight waves

- Module for generating circular waves

- Module for generating two interfering circular waves

- Drainage Hose

- Immersion bodies for reflection and refraction (prism, biconcave lens and biconvex lens)

- Immersion bodies for setting up a single slit and a double slit

Dimensions:

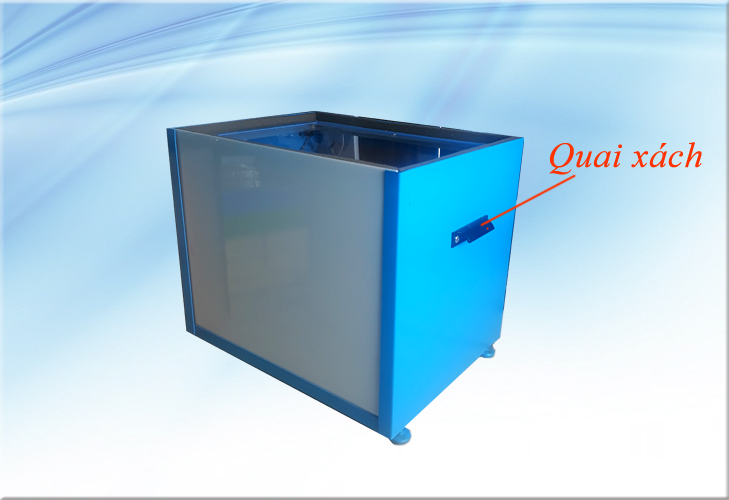

- Tank structure: 400x300x320 mm, Blue color.

- Projection screen: 375x320 mm2 approx.
